Cherry Blossom day prediction

So earlier this year I participated in International Cherry Blossom Prediction Competition, which invites you to predict this years bloom date of cherry trees in 5 different locations based on provided historical bloom dates provided and any data you dig out. Now that cherry trees bloomed long time ago, I am sharing my entry. As good ideas come after, I enhanced last modelling step by introducing State-Space framework into GAM model, allowing to deal with observation poor sites. Lets load all required packages.

# Load all required packages
library(nasapower)
library(grateful)
library(tidyverse)
library(lubridate)
library(ggplot2)
library(data.table)
library(missForest)
library(spls)
library(stringr)
library(mvgam)
library(tibble)

Cherry Blossom Data Engineering

The historical cherry blossom data was provided by the competition organizers at https://competition.statistics.gmu.edu/. For New York City, which had only one historical record in the competition dataset, I augmented it with observations from the USA National Phenology Network.

Import cherry blossom data

# Import cherry blossom data and filter for records from 1981 onward
Vancouver <- read_csv("data/vancouver.csv",show_col_types = FALSE)
Washington <- read_csv("data/washingtondc.csv",show_col_types = FALSE)
Kyoto <- read_csv("data/kyoto.csv",show_col_types = FALSE)
Swiss <- read_csv("data/liestal.csv",show_col_types = FALSE)
Nyc <- read_csv("data/nyc.csv",show_col_types = FALSE)

combined_blossom_dates <- rbind(Vancouver, Washington, Kyoto, Swiss, Nyc)
combined_blossom_dates <- combined_blossom_dates[order(combined_blossom_dates$location, combined_blossom_dates$year), ]
combined_blossom_dates <- combined_blossom_dates[combined_blossom_dates$year >= 1981, ]

Augment New York data with USA-NPN observations

# Read USA-NPN individual phenometrics data
USA_NPN_status_intensity <- read_csv('data/USA-NPN_status_intensity_observations_data.csv', show_col_types = FALSE)

# Convert to data frame and prepare Intensity_Value as factor
USA_status <- as.data.frame(USA_NPN_status_intensity)
USA_status$Intensity_Value <- as.factor(USA_status$Intensity_Value)

# Filter out records with intensity values that do not match our criteria
USA_status_filtered <- USA_status[!(USA_status$Intensity_Value %in%
  c("-9999", "Little", "25-49%", "5-24%", "Less than 5%", "More than 10", "50-74%")), ]

# Convert dates and extract Year and Day of Year
USA_status_filtered$Date <- mdy(USA_status_filtered$Observation_Date)
USA_status_filtered$Year <- year(USA_status_filtered$Date)
USA_status_filtered$Day_of_Year <- yday(USA_status_filtered$Date)

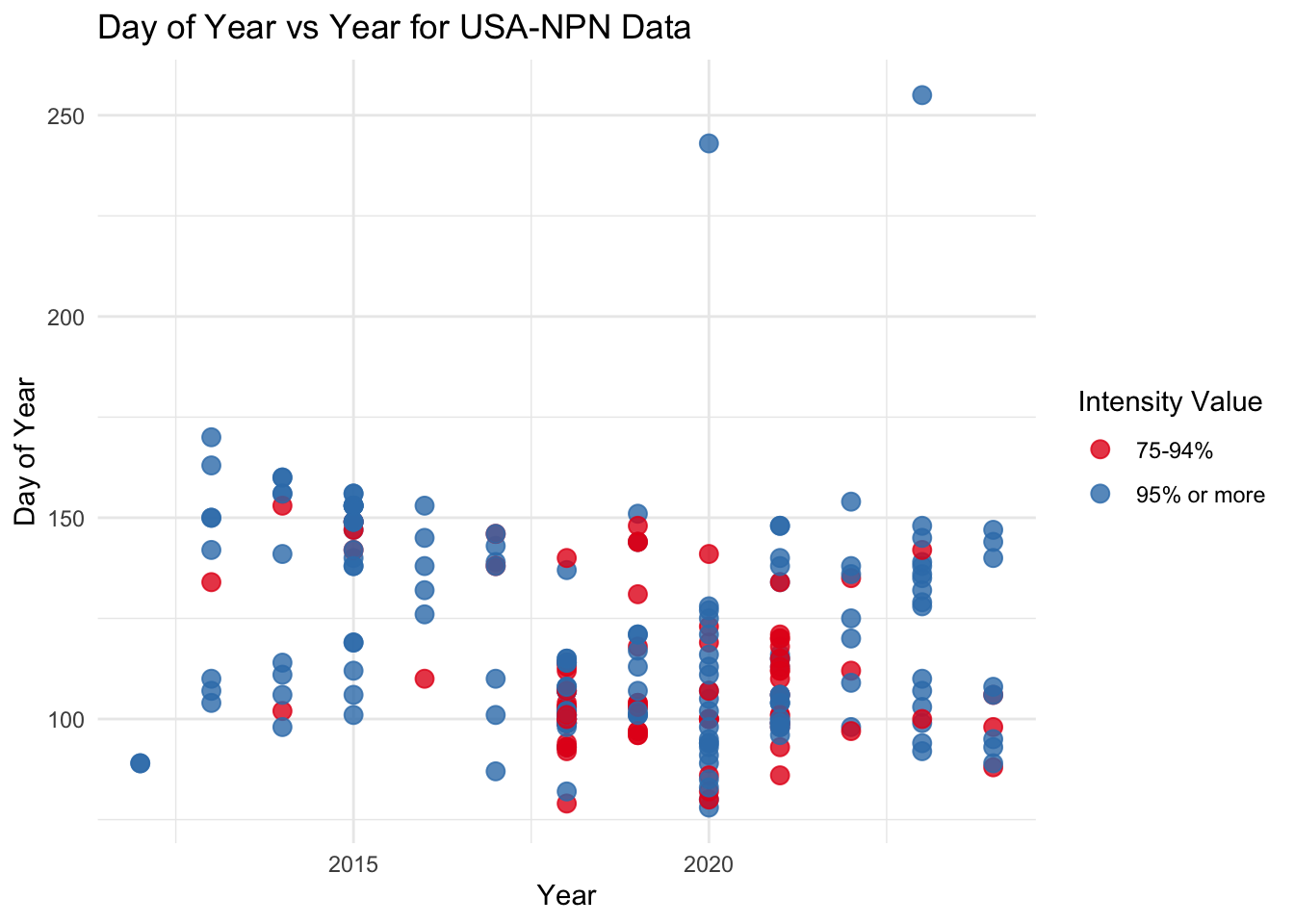

# Create a scatter plot to visualize Day of Year vs. Year, colored by Intensity_Value
ggplot(USA_status_filtered, aes(x = Year, y = Day_of_Year, color = Intensity_Value)) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_brewer(palette = "Set1") +
  labs(title = "Day of Year vs Year for USA-NPN Data",
       x = "Year",
       y = "Day of Year",
       color = "Intensity Value") +
  theme_minimal()

# Summarize the filtered data by year
year_summary_NY_individual <- USA_status_filtered %>%
  group_by(Year) %>%
  summarize(
    Min = min(Day_of_Year, na.rm = TRUE),
    Q1 = quantile(Day_of_Year, 0.25, na.rm = TRUE),
    Median = median(Day_of_Year, na.rm = TRUE),
    Mean = mean(Day_of_Year, na.rm = TRUE),
    Q3 = quantile(Day_of_Year, 0.75, na.rm = TRUE),
    Max = max(Day_of_Year, na.rm = TRUE),
    Count = n()
  )
print(year_summary_NY_individual)

# A tibble: 13 × 8
    Year   Min    Q1 Median  Mean    Q3   Max Count
   <int> <int> <dbl>  <dbl> <dbl> <dbl> <int> <int>
 1  2012    89  89      89    89    89     89     2
 2  2013   104 110     142   137.  150    170     9
 3  2014    98 108.    141   132.  156    160    11
 4  2015   101 138     148   141.  153    156    24
 5  2016   110 128.    135   134   143.   153     6
 6  2017    87 110     138   128.  143    146     9
 7  2018    79  99     101   103.  107    140    66
 8  2019    96 101     106.  115.  124.   151    24
 9  2020    78  90.5   100   107.  117.   243    32
10  2021    86  99     106   111.  116    148    41
11  2022    97 110.    122.  122.  136.   154    10
12  2023    92 104     130.  130.  139.   255    18
13  2024    88  94     106   110.  124    147    11

# Create new NY data frame from the yearly summary (excluding 2024)
ny_data <- data.frame(
  location = "newyorkcity",
  lat = 40.73040,
  long = -73.99809,
  alt = 8.5,
  year = year_summary_NY_individual$Year[year_summary_NY_individual$Year != 2024],
  bloom_date = NA,
  bloom_doy = year_summary_NY_individual$Min[year_summary_NY_individual$Year != 2024]
)

# Convert day-of-year to actual dates
ny_data$bloom_date <- as.Date(ny_data$bloom_doy - 1, origin = paste0(ny_data$year, "-01-01"))

# Merge with existing combined blossom dates
combined_blossom_dates <- rbind(combined_blossom_dates, ny_data)
combined_blossom_dates <- combined_blossom_dates[order(combined_blossom_dates$location, combined_blossom_dates$year), ]

Let’s examine the distribution of bloom dates across locations to determine an appropriate modeling timeframe:

# Summarize blossom dates by location
blossom_summary <- combined_blossom_dates %>%
  group_by(location) %>%
  summarise(
    Min = min(bloom_doy),
    Q1 = quantile(bloom_doy, 0.25),
    Median = median(bloom_doy),
    Q3 = quantile(bloom_doy, 0.75),
    Max = max(bloom_doy),
    Range = max(bloom_doy) - min(bloom_doy)
  )
print(blossom_summary)

# A tibble: 5 × 7
  location       Min    Q1 Median    Q3   Max Range
  <chr>        <dbl> <dbl>  <dbl> <dbl> <dbl> <dbl>
1 kyoto           84  93       95    99   109    25
2 liestal         75  87       93   101   121    46
3 newyorkcity     78  87       92    98   110    32
4 vancouver       83  84.5     86    91    96    13
5 washingtondc    74  86       91    95   101    27

The maximum third quartile (Q3) at day 100 represents when 75% of historical blooms have occurred in late–bloomer locations effectively marking the end of the bloom season across all locations. While I could theoretically calculate predictors from one recorded bloom date to the next, this creates a circular dependency: to predict next year’s bloom date, we’d need to know it already to determine when to stop accumulating our weather predictors. By using day 100 as our universal cutoff, I establish a “cherry year” that runs from April 10 to April 9, nicely matching historical bloom cycles. ### 2. Weather Feature Engineering

With our cherry year defined (April 10 to April 9), we now need to engineer weather features that align with this timeframe. The challenge is creating predictors that capture cumulative weather effects leading up to bloom, without knowing when the bloom will occur.

I used NASA POWER for continuous weather data from 1981-2025, calculated daily anomalies to normalize across locations, created 30-day rolling sums to capture cumulative effects, and transformed everything to cherry year coordinates. Missing values (~2.4%) were imputed using random forest.

Download weather data from NASA POWER

# Retrieve weather data using nasapower for each location
Kyoto_temp <- get_power(
       community = "ag",
       lonlat = c(135.6761, 35.0120),
       pars = c("T2M", "T2M_MAX","T2M_MIN", "PRECTOTCORR"),
       dates = c("1981-01-01", "2025-02-15"),
       temporal_api = "daily"
)

Swiss_temp <- get_power(
  community = "ag",
  lonlat = c(7.730519, 47.4814),
  pars = c("T2M", "T2M_MAX","T2M_MIN", "PRECTOTCORR"),
  dates = c("1981-01-01", "2025-02-15"),
  temporal_api = "daily"
)

Washington_temp <- get_power(
  community = "ag",
  lonlat = c(-77.0386, 38.8853),
  pars = c("T2M", "T2M_MAX","T2M_MIN", "PRECTOTCORR"),
  dates = c("1981-01-01", "2025-02-15"),
  temporal_api = "daily"
)

Vancouver_temp <- get_power(
  community = "ag",
  lonlat = c(-123.1636, 49.2237),
   pars = c("T2M", "T2M_MAX","T2M_MIN", "PRECTOTCORR"),
  dates = c("1981-01-01", "2025-02-15"),
  temporal_api = "daily"
)

NY_temp <- get_power(
  community = "ag",
  lonlat = c(-73.99809, 40.73040),
  pars = c("T2M", "T2M_MAX","T2M_MIN", "PRECTOTCORR"),
  dates = c("1981-01-01", "2025-02-15"),
  temporal_api = "daily"
)

Calculate daily weather anomalies

# Function to calculate daily climate anomalies
calculate_climate_anomalies <- function(data,
                                        baseline_start = 1981,
                                        baseline_end = 2024,
                                        vars = c("T2M", "T2M_MAX", "T2M_MIN", "PRECTOTCORR")) {

  # Validate input variables
  if (!all(vars %in% names(data))) {
    stop("Not all specified variables are present in the dataset.")
  }
  if (!all(c("YEAR", "DOY") %in% names(data))) {
    stop("Dataset must include 'YEAR' and 'DOY' columns.")
  }

  # Create baseline subset
  baseline_data <- data[data$YEAR >= baseline_start & data$YEAR <= baseline_end, ]

  # Calculate daily climatology (mean for each day-of-year)
  climatology <- aggregate(baseline_data[vars],
                           by = list(DOY = baseline_data$DOY),
                           FUN = mean,
                           na.rm = TRUE)

  # Merge climatology with original data and compute anomalies
  result <- merge(data, climatology, by = "DOY", suffixes = c("", "_mean"))
  for (var in vars) {
    mean_col <- paste0(var, "_mean")
    anom_col <- paste0(var, "_anomaly")
    result[[anom_col]] <- result[[var]] - result[[mean_col]]
  }

  # Attach attributes and sort by date
  attr(result, "baseline_period") <- paste(baseline_start, "-", baseline_end)
  attr(result, "variables") <- vars
  result <- result[order(result$YYYYMMDD), ]

  return(result)
}

# Calculate anomalies for each location
NY_temp_anomalies <- calculate_climate_anomalies(NY_temp)
Vancouver_temp_anomalies <- calculate_climate_anomalies(Vancouver_temp)
Swiss_temp_anomalies <- calculate_climate_anomalies(Swiss_temp)
Washington_temp_anomalies <- calculate_climate_anomalies(Washington_temp)
Kyoto_temp_anomalies <- calculate_climate_anomalies(Kyoto_temp)

# Append location identifiers and combine
NY_temp_anomalies$location <- "New York, USA"
Vancouver_temp_anomalies$location <- "Vancouver, Canada"
Swiss_temp_anomalies$location <- "Liestal-Weideli, Switzerland"
Washington_temp_anomalies$location <- "Washington DC, USA"
Kyoto_temp_anomalies$location <- "Kyoto, Japan"

combined_anomalies <- rbind(
  NY_temp_anomalies,
  Vancouver_temp_anomalies,
  Swiss_temp_anomalies,
  Washington_temp_anomalies,
  Kyoto_temp_anomalies
)
combined_anomalies <- combined_anomalies[order(combined_anomalies$location, combined_anomalies$YYYYMMDD), ]

Create rolling sums and transform to cherry years

# Convert to data.table and compute 30-day rolling sums for each anomaly type
combined_anomalies <- as.data.table(combined_anomalies)
combined_anomalies[, temp_ave_pos_rollsum := frollsum(ifelse(T2M_anomaly > 0, T2M_anomaly, 0), n = 30, align = "right"), by = location]
combined_anomalies[, temp_ave_neg_rollsum := frollsum(ifelse(T2M_anomaly < 0, T2M_anomaly, 0), n = 30, align = "right"), by = location]
combined_anomalies[, temp_max_pos_rollsum := frollsum(ifelse(T2M_MAX_anomaly > 0, T2M_MAX_anomaly, 0), n = 30, align = "right"), by = location]
combined_anomalies[, temp_max_neg_rollsum := frollsum(ifelse(T2M_MAX_anomaly < 0, T2M_MAX_anomaly, 0), n = 30, align = "right"), by = location]
combined_anomalies[, temp_min_pos_rollsum := frollsum(ifelse(T2M_MIN_anomaly > 0, T2M_MIN_anomaly, 0), n = 30, align = "right"), by = location]
combined_anomalies[, temp_min_neg_rollsum := frollsum(ifelse(T2M_MIN_anomaly < 0, T2M_MIN_anomaly, 0), n = 30, align = "right"), by = location]
combined_anomalies[, prcp_pos_rollsum := frollsum(ifelse(PRECTOTCORR_anomaly > 0, PRECTOTCORR_anomaly, 0), n = 30, align = "right"), by = location]
combined_anomalies[, prcp_neg_rollsum := frollsum(ifelse(PRECTOTCORR_anomaly < 0, PRECTOTCORR_anomaly, 0), n = 30, align = "right"), by = location]

# Create a numeric day-of-year and adjust to form a 'cherry_year'
combined_anomalies[, doy := as.numeric(format(YYYYMMDD, "%j"))]
combined_anomalies[, cherry_year := ifelse(doy >= 100, year(YYYYMMDD) + 1, year(YYYYMMDD))]
combined_anomalies[, day_number := ifelse(doy >= 100, doy - 99, doy + (366 - 99))]

small_anomaly_df <- combined_anomalies %>%
  select(-c(DOY, LON, LAT, YEAR, MM, DD, T2M, T2M_MAX, T2M_MIN, PRECTOTCORR,
            T2M_mean, T2M_MAX_mean, T2M_MIN_mean, PRECTOTCORR_mean,
            T2M_anomaly, T2M_MAX_anomaly, T2M_MIN_anomaly, PRECTOTCORR_anomaly))

Reshape to wide format and impute missing values

# Example for positive temperature average anomalies - repeated for all 8 variables
wide_temp_ave_pos <- dcast(small_anomaly_df[!is.na(temp_ave_pos_rollsum)],
                           cherry_year + location ~ day_number,
                           value.var = "temp_ave_pos_rollsum")
setnames(wide_temp_ave_pos,
         old = setdiff(names(wide_temp_ave_pos), c("cherry_year", "location")),
         new = paste0("temp_ave_pos_rollsum_", seq_along(setdiff(names(wide_temp_ave_pos), c("cherry_year", "location")))))

numeric_cols <- setdiff(names(wide_temp_ave_pos), c("cherry_year", "location"))
numeric_matrix <- as.matrix(wide_temp_ave_pos[, ..numeric_cols])
imputed_result <- missForest(numeric_matrix, maxiter = 5, verbose = TRUE)
imputed_matrix <- imputed_result$ximp
wide_temp_ave_pos_imputed <- cbind(wide_temp_ave_pos[, .(cherry_year, location)], imputed_matrix)

# Repeat for all 8 rolling sum variables...
# [Similar code blocks for temp_ave_neg, temp_max_pos, temp_max_neg,
#  temp_min_pos, temp_min_neg, prcp_pos, prcp_neg]

# Merge all wide-format datasets by cherry_year and location
final_wide <- Reduce(function(x, y) merge(x, y, by = c("cherry_year", "location"), all = TRUE),
                     list(wide_temp_ave_pos_imputed, wide_temp_ave_neg_imputed,
                          wide_temp_max_pos_imputed, wide_temp_max_neg_imputed,
                          wide_temp_min_pos_imputed, wide_temp_min_neg_imputed,
                          wide_prcp_pos_imputed, wide_prcp_neg_imputed))

Merge with bloom dates

final_wide <- as_tibble(final_wide)

# Map location names to match blossom data format
location_mapping <- c(
  "Kyoto, Japan"                = "kyoto",
  "Liestal-Weideli, Switzerland" = "liestal",
  "New York, USA"               = "newyorkcity",
  "Vancouver, Canada"           = "vancouver",
  "Washington DC, USA"          = "washingtondc"
)
final_wide$location_mapped <- location_mapping[final_wide$location]

# Merge with bloom dates
final_wide <- merge(
  final_wide,
  combined_blossom_dates[, c("location", "year", "bloom_doy")],
  by.x = c("location_mapped", "cherry_year"),
  by.y = c("location", "year"),
  all.x = TRUE
)

# Reorder columns to put key variables first
keep_vars <- c("cherry_year", "location", "bloom_doy")
existing_keep_vars <- keep_vars[keep_vars %in% colnames(final_wide)]
other_vars <- setdiff(names(final_wide), c(existing_keep_vars, "location_mapped"))
final_wide <- final_wide[, c(existing_keep_vars, other_vars)]

# Save the final dataset
write.csv(final_wide, "data/final_wide_with_bloom.csv", row.names = TRUE)

The final dataset contains 2,928 weather predictors (8 rolling sums × 366 days) aligned to our cherry year timeframe, plus the actual bloom dates. You can download the pre-processed data from final_wide_with_bloom.csv or recreate it using the code above.

To use the pre-processed data in your analysis:

# Load the pre-processed data
final_wide <- read.csv("data/final_wide_with_bloom.csv", row.names = 1)

Selecting and Engineering features for blossom date prediction using sparse Partial Least Squares

In this section, I use Sparse Partial Least Squares (SPLS) to identify key predictors and extract latent factors that summarize the high-dimensional weather data. SPLS is particularly well-suited for our case: we have nearly 3,000 highly correlated rolling-sum features and just a few hundred samples. This method not only reduces dimensionality but also performs variable selection by introducing a sparsity penalty—so we can focus on the most relevant time windows and weather patterns that drive blooming. I first convert our wide-format dataset into a matrix form and define predictors (X) and the response (Y, i.e., bloom day). Then, I run a grid search with 10-fold cross-validation to find the best combination of latent factor count (K) and sparsity level (eta). Once the optimal parameters are selected, I fit the SPLS model to the training data. This gives me both a sparse projection matrix and a subset of predictors contributing to each latent factor. Finally, I use the trained model to compute latent scores (latent1, latent2, etc.) for all observations—these represent condensed weather signatures that track with bloom timing and will be used for downstream modeling. For now, I’ll treat all locations as pooled, ignoring site-specific effects (which I’ll handle later with GAMs).

# Prepare data for SPLS
my_data <- as.data.frame(final_wide)
id_cols <- c("cherry_year", "location", "bloom_doy")

predictor_cols <- setdiff(names(my_data), id_cols)
train_data <- subset(my_data, !is.na(bloom_doy))

X_train <- as.matrix(train_data[, predictor_cols])
Y_train <- train_data$bloom_doy

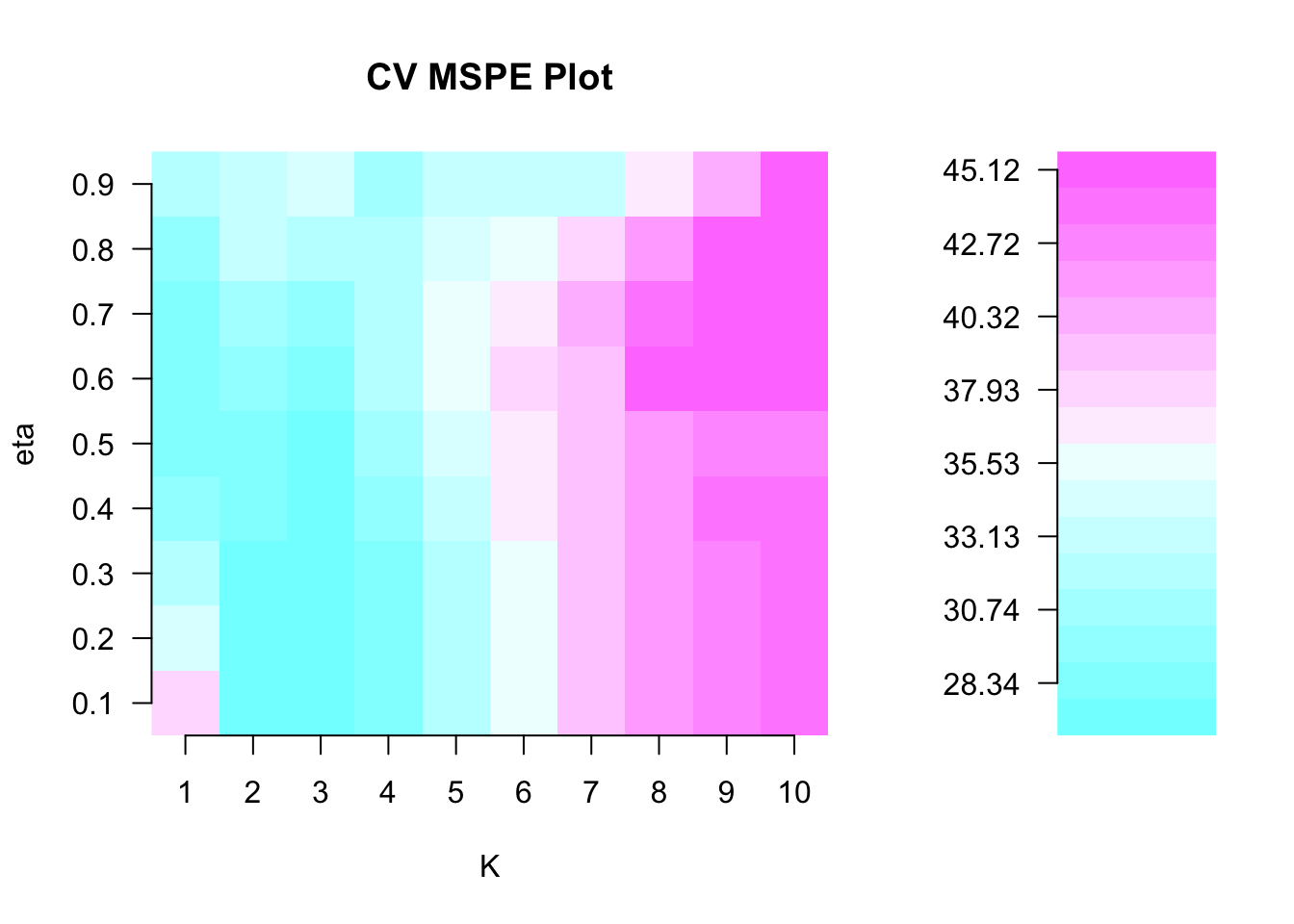

# Cross-validation for optimal parameters
set.seed(123)
cv.out <- cv.spls(
  X_train,
  Y_train,
  K   = 1:10,
  eta = seq(0.1, 0.9, 0.1),
  fold = 10
)

eta = 0.1
eta = 0.2
eta = 0.3
eta = 0.4
eta = 0.5
eta = 0.6
eta = 0.7
eta = 0.8
eta = 0.9

Optimal parameters: eta = 0.3, K = 3

optimal_K   <- cv.out$K.opt
optimal_eta <- cv.out$eta.opt

# Fit final SPLS model and extract latent factors
final_model <- spls(X_train, Y_train, K = optimal_K, eta = optimal_eta)
X_all <- as.matrix(my_data[, predictor_cols])
X_all_std <- sweep(X_all, 2, final_model$meanx, FUN = "-")
X_all_std <- sweep(X_all_std, 2, final_model$normx, FUN = "/")
X_all_sub <- X_all_std[, final_model$A, drop = FALSE]
latent_all <- X_all_sub %*% final_model$projection

num_latent <- ncol(latent_all)
colnames(latent_all) <- paste0("latent", seq_len(num_latent))

latent_df <- data.frame(
  cherry_year = my_data$cherry_year,
  location    = my_data$location,
  bloom_doy   = my_data$bloom_doy,
  latent_all
)

So our optimization left us with 3 latent factors. Not bad. Lets as LLMs like to say delve deeper. ### Performance of our Sparse PLS model I first assess the performance of our Sparse PLS model using training data. I compute key statistics—such as R², RMSE, and MAE—to gauge how well the model explains the variance in the bloom day (with a higher R² indicating a better fit).

# Predict on training data
y_pred_train <- predict(final_model, X_train)
SST <- sum((Y_train - mean(Y_train))^2)
SSE <- sum((Y_train - y_pred_train)^2)
R2_train <- 1 - SSE/SST

MAE_train <- mean(abs(Y_train - y_pred_train))
RMSE_train <- sqrt(mean((Y_train - y_pred_train)^2))
n_selected_vars <- length(final_model$A)
percent_vars_selected <- (n_selected_vars / length(predictor_cols)) * 100

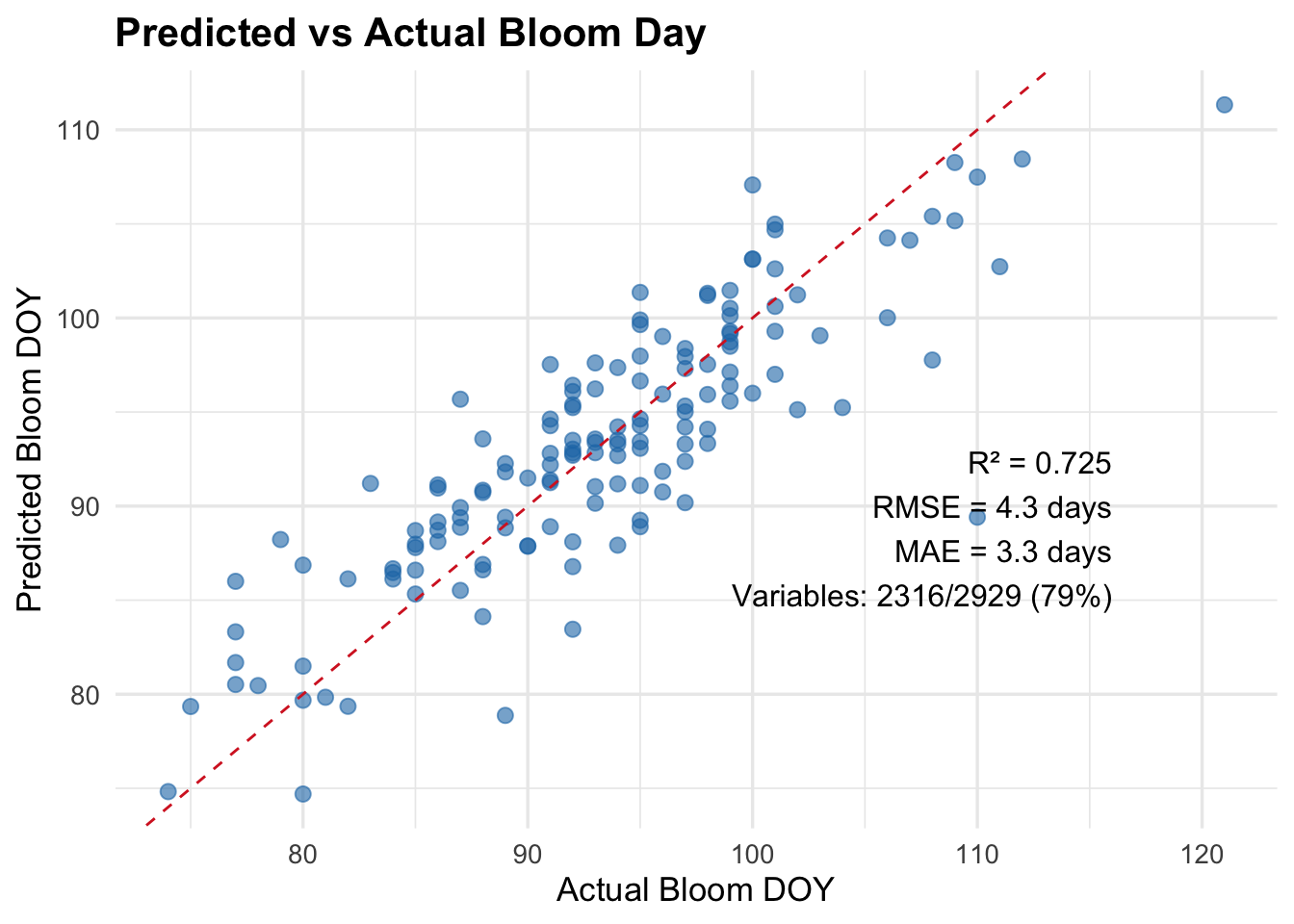

# Diagnostic plot with unified styling
stats_text <- paste0(
  "R² = ", round(R2_train, 3), "\n",
  "RMSE = ", round(RMSE_train, 1), " days\n",
  "MAE = ", round(MAE_train, 1), " days\n",
  "Variables: ", n_selected_vars, "/", length(predictor_cols),
  " (", round(percent_vars_selected, 0), "%)"
)

ggplot(data.frame(Actual = Y_train, Predicted = y_pred_train), aes(x = Actual, y = Predicted)) +
  geom_point(color = "#1f77b4", alpha = 0.6, size = 2.5) +
  geom_abline(intercept = 0, slope = 1, linetype = "dashed", color = "#d62728") +
  annotate("text", x = max(Y_train) - 5, y = min(y_pred_train) + 10,
           label = stats_text, hjust = 1, vjust = 0, size = 4.2, color = "black") +
  labs(
    title = "Predicted vs Actual Bloom Day",
    x = "Actual Bloom DOY",
    y = "Predicted Bloom DOY"
  ) +
  theme_minimal(base_size = 13) +
  theme(
    plot.title = element_text(face = "bold"),
    legend.position = "right"
  )

Not so shabby! Now lets examine the latent factors:

Latent Factor Interpretation

# Parse the projection matrix from the SPLS model
proj_mat <- final_model$projection
# Each row name is in the form "temp_ave_pos_rollsum_123"
parsed <- str_match(rownames(proj_mat), "^(.*)_(\\d+)$")
group_names <- parsed[, 2]           # e.g., "temp_ave_pos_rollsum"
day_indices <- as.numeric(parsed[, 3])  # day number

# Create a data frame of loadings with associated group and day
df_proj <- as.data.frame(proj_mat)
df_proj$group <- group_names
df_proj$day   <- day_indices

# Rename factor columns for clarity
n_fac <- ncol(proj_mat)
colnames(df_proj)[1:n_fac] <- paste0("Factor", seq_len(n_fac))

# Pivot the data to long format: each row becomes (group, day, factor, loading)
df_long <- pivot_longer(df_proj,
                        cols = starts_with("Factor"),
                        names_to = "factor",
                        values_to = "loading")

# Build a complete grid for all groups, days (1:366), and factors
all_groups <- c("temp_ave_pos_rollsum", "temp_ave_neg_rollsum",
                "temp_max_pos_rollsum", "temp_max_neg_rollsum",
                "temp_min_pos_rollsum", "temp_min_neg_rollsum",
                "prcp_pos_rollsum", "prcp_neg_rollsum")
all_factors <- unique(df_long$factor)
grid_df <- expand.grid(group = all_groups, day = 1:366, factor = all_factors,
                       stringsAsFactors = FALSE)

# Merge grid with loadings to include missing combinations as NA
df_plot <- left_join(grid_df, df_long, by = c("group", "day", "factor"))

# Convert day index to a date for plotting; day 1 corresponds to April 10
base_date <- as.Date("2020-04-10")
df_plot$date <- base_date + (df_plot$day - 1)

# Extract variable type and anomaly direction from group name
df_plot <- df_plot %>%
  mutate(
    type = gsub("_pos_rollsum.*|_neg_rollsum.*", "", group),
    anomaly = ifelse(grepl("_pos_", group), "pos", "neg")
  ) %>%
  mutate(type = factor(type, levels = c("temp_min", "temp_ave", "temp_max", "prcp")),
         anomaly = factor(anomaly, levels = c("pos", "neg")))

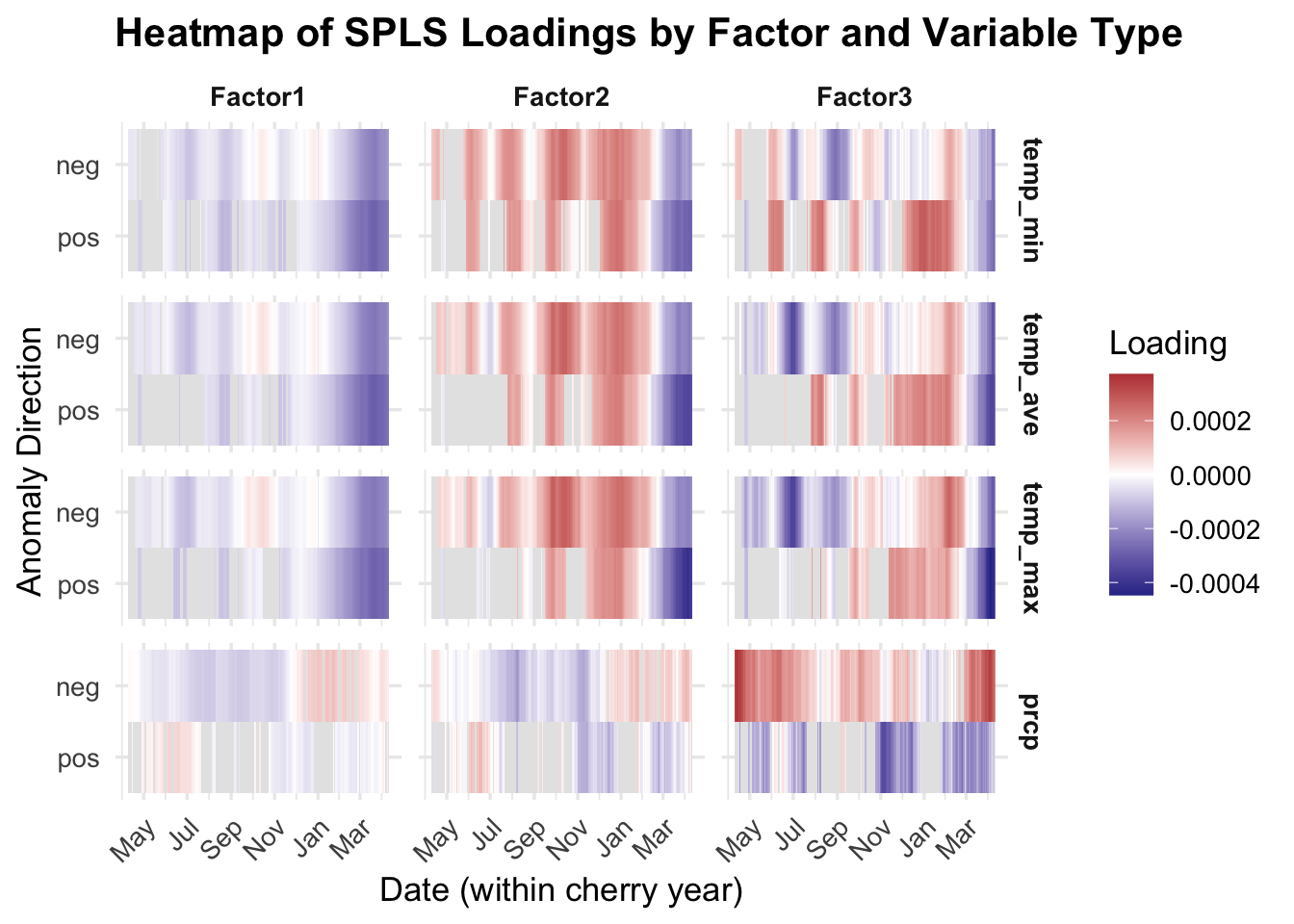

# Heatmap of latent factor loadings
ggplot(df_plot, aes(x = date, y = anomaly, fill = loading)) +
  geom_tile() +
  facet_grid(type ~ factor) +
  scale_x_date(date_breaks = "2 months", date_labels = "%b") +
  scale_fill_gradient2(
    low = "#313695", mid = "white", high = "#a50026", midpoint = 0,
    na.value = "grey90",
    labels = scales::label_number(accuracy = 0.0001)
  ) +
  labs(
    title = "Heatmap of SPLS Loadings by Factor and Variable Type",
    x = "Date (within cherry year)",
    y = "Anomaly Direction",
    fill = "Loading"
  ) +
  theme_minimal(base_size = 13) +
  theme(
    strip.text = element_text(face = "bold"),
    axis.text.x = element_text(angle = 45, hjust = 1),
    plot.title = element_text(face = "bold")
  )

These factors summarize the original rolling sum predictors, showing clear patterns. Negative temperature anomalies accumulated before the median bloom date load negatively; since these sums are negative, a larger accumulation of cold days actually delays blooming. In contrast, higher rolling sums of positive temperature anomalies—indicating warmer days—load negatively, which means that more warm days speed up the bloom. Additionally, the model captures a dormancy effect: a buildup of cold days in October and November tends to lead to an earlier bloom the following year. Similarly, lower-than-average precipitation starting in December is associated with earlier blooming. This interpretation confirms that the latent factors meaningfully reflect the influence of weather on cherry blossom timing.

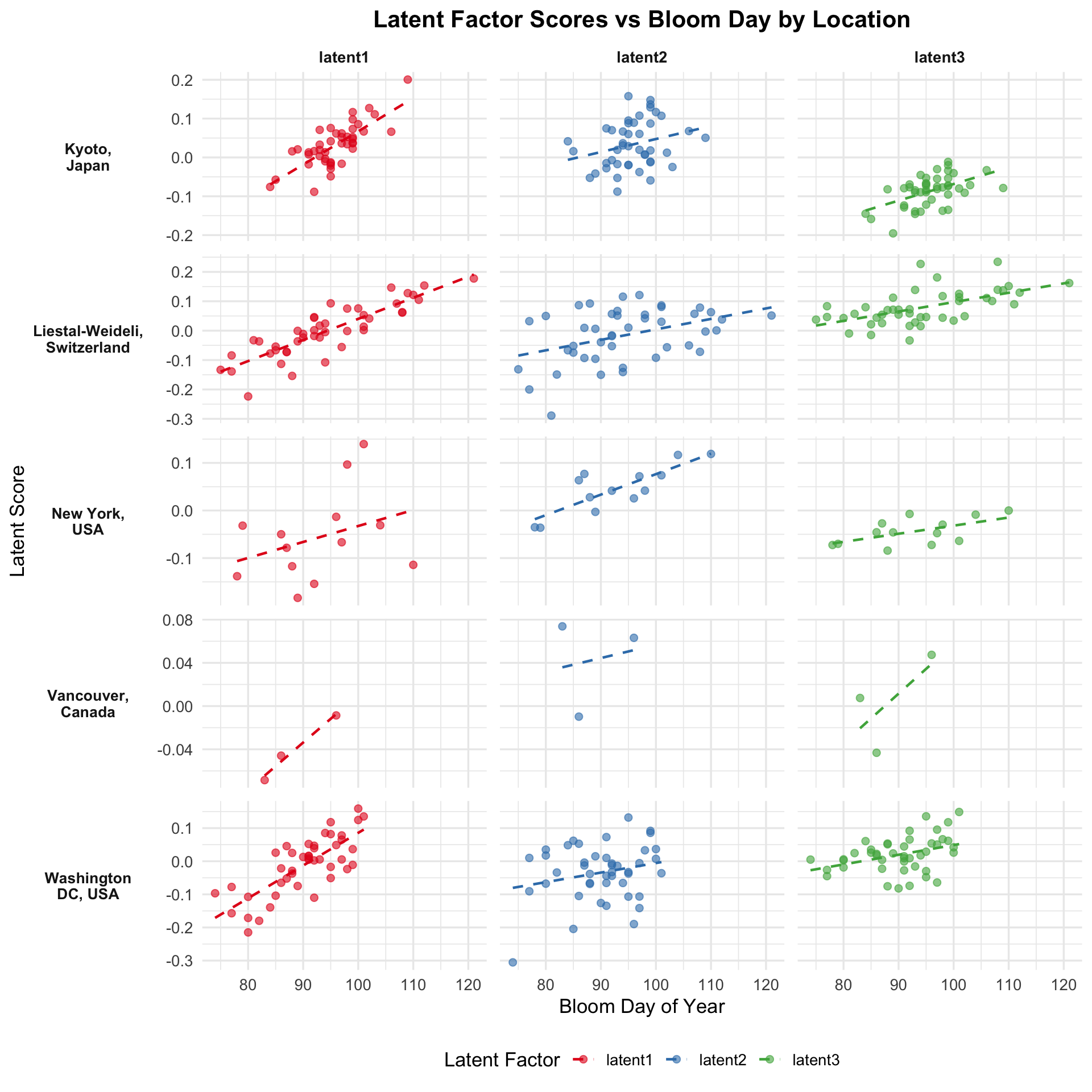

Now let’s examine how these latent factors cluster by location.

# Cleaned and pivoted as before
latent_clean <- latent_df %>%
  pivot_longer(starts_with("latent"), names_to = "factor", values_to = "score") %>%
  filter(!is.na(bloom_doy), !is.na(score), is.finite(bloom_doy), is.finite(score))

ggplot(latent_clean, aes(x = bloom_doy, y = score, color = factor)) +
  geom_point(alpha = 0.6, size = 2, na.rm = TRUE) +
  geom_smooth(method = "lm", se = FALSE, linetype = "dashed", linewidth = 0.8, na.rm = TRUE) +

  # wrap long facet labels at ~12 characters
  facet_grid(
    location ~ factor,
    scales  = "free_y",
    switch  = "y",
    labeller = labeller(location = label_wrap_gen(width = 12))
  ) +

  scale_color_brewer(palette = "Set1") +
  labs(
    title = "Latent Factor Scores vs Bloom Day by Location",
    x     = "Bloom Day of Year",
    y     = "Latent Score",
    color = "Latent Factor"
  ) +
  theme_minimal(base_size = 13) +
  theme(
    # move the y-strips to the left side
    strip.placement        = "outside",
    # make left strip text horizontal and a bit smaller
    strip.text.y.left      = element_text(angle = 0, size = 10, face = "bold", margin = margin(r = 6)),
    # standard strip text for top
    strip.text             = element_text(face = "bold"),
    # tighten the panels
    panel.spacing          = unit(0.6, "lines"),
    # legend at bottom
    legend.position        = "bottom",
    # bold title
    plot.title             = element_text(face = "bold", hjust = 0.5)
  )

`geom_smooth()` using formula = 'y ~ x'

Even though each latent factor shows an almost linear relationship with bloom day, you can see that the fitted lines for different sites sit at slightly different levels (and in some cases have different slopes). Those location-specific shifts tell us that bloom–weather relationships aren’t identical everywhere—so in the next step we’ll fit a GAM with separate smooths for each site to capture those nuances.

Dynamic GAM Modeling for Forecasting

Dynamic GAM Modeling for Location-Specific Latent Factor Adaptation

I now have three powerful latent factors from our SPLS analysis that capture the main weather patterns driving cherry blossom variability. However, these factors were derived as linear predictors from data pooled across all five locations, assuming each site responds identically to the same weather patterns.

The problem: Real cherry trees don’t follow universal rules. Each location likely has its own unique sensitivity to weather - Kyoto’s cherry blossoms might respond differently to warming than Vancouver’s, and some locations have frustratingly sparse observations that make traditional modeling challenging.

The approach: So I decided to go with mvgam (Clark and Wells 2023). mvgam stands for MultiVariate (Dynamic) Generalized Additive Models and is specifically designed for time series analysis like ours:

Time series focus: Specifically designed for time series prediction with built-in capabilities to model autocorrelation if needed.
GAM flexibility: At its core, it’s still a GAM, making it ideal for bending our otherwise linear latent factors to each location individually.
State-space robustness: The state-space modeling framework is perfect for time series with missing observations. It models the underlying bloom process separately from the observations, so our sparse New York and Vancouver data doesn’t break the model—missing data areas handled by modeling the latent bloom process as it evolves through time.
Bayesian uncertainty: The Bayesian framework provides natural uncertainty quantification for both parameters and predictions.

Data preparation and model setup

First, I split my data into training and testing sets at 2024 to ensure at least one bloom date for each location in our forecast evaluation. For state-space modeling, I need both series (to identify different time series) and trend (for the process formula) variables.

My model structure uses shrinkage smooths (bs="sz") to handle the location-specific responses. For example, s(latent1, k=3) creates the main smooth effect of latent1, while s(trend, latent1, bs="sz", k=3) adds location-specific deviations. The “sz” basis applies shrinkage - locations with sparse data have their specific effects shrunk toward zero, essentially borrowing the response pattern from data-rich locations. Meanwhile, Kyoto and others with complete records can maintain their unique response curves.

Let’s prepare the data and fit the model:

df <- latent_df
df$location <- as.factor(df$location)
df$series <- df$location  # Keep series for identifying time series
df$trend <- df$location   # Add trend for trend_formula
df$time <- df$cherry_year - 1981 #For numerical stability

# Split data into training (<2024) and testing (>=2024)
train_mvgam <- df[df$cherry_year < 2024, ]
test_mvgam  <- df[df$cherry_year >= 2024, ]


# Now fit with tweaked priors
model_gaussian <- mvgam(formula = bloom_doy ~ series,
                     trend_formula = ~ s(latent1, k=3) + s(trend, latent1, bs="sz",k=3) +
                           s(latent2, k=3) + s(trend, latent2, bs="sz",k=3) +
                           s(latent3, k=3) + s(trend, latent3, bs="sz",k=3),
                     data = train_mvgam,
                     newdata = test_mvgam,
                     noncentred = TRUE,
                     family = gaussian(),silent = 2)

Let’s examine the model diagnostics:

summary(model_gaussian, include_betas = FALSE)

GAM observation formula:
bloom_doy ~ series

GAM process formula:
~s(latent1, k = 3) + s(trend, latent1, bs = "sz", k = 3) + s(latent2,
    k = 3) + s(trend, latent2, bs = "sz", k = 3) + s(latent3,
    k = 3) + s(trend, latent3, bs = "sz", k = 3)

Family:
gaussian

Link function:
identity

Trend model:
None

N process models:
5

N series:
5

N timepoints:
45

Status:
Fitted using Stan
4 chains, each with iter = 1000; warmup = 500; thin = 1
Total post-warmup draws = 2000


Observation error parameter estimates:
             2.5%  50% 97.5% Rhat n_eff
sigma_obs[1] 0.98 2.30   3.1 1.08    50
sigma_obs[2] 2.50 3.50   4.6 1.02   209
sigma_obs[3] 5.70 8.30  14.0 1.00   996
sigma_obs[4] 0.16 0.95   5.2 1.00  1024
sigma_obs[5] 1.10 3.40   4.3 1.08    37

GAM observation model coefficient (beta) estimates:
                                   2.5%   50% 97.5% Rhat n_eff
(Intercept)                        89.0 94.00  99.0 1.00  1271
seriesLiestal-Weideli, Switzerland -5.0 -1.80   1.1 1.00  1047
seriesNew York, USA                -2.6  0.82   4.7 1.00  1492
seriesVancouver, Canada            -4.3 -1.30   1.4 1.00  1147
seriesWashington DC, USA           -5.6 -1.70   2.1 1.01   593

Process error parameter estimates:
           2.5%  50% 97.5% Rhat n_eff
sigma[1] 0.0069 0.48   2.1 1.07    54
sigma[2] 0.0170 0.41   2.3 1.02   156
sigma[3] 0.0150 0.34   1.9 1.00  1205
sigma[4] 0.0110 0.50   2.0 1.00   959
sigma[5] 0.0190 0.44   3.2 1.09    35

GAM process model coefficient (beta) estimates:
                  2.5%   50% 97.5% Rhat n_eff
(Intercept)_trend -5.1 0.016   4.8    1  1350

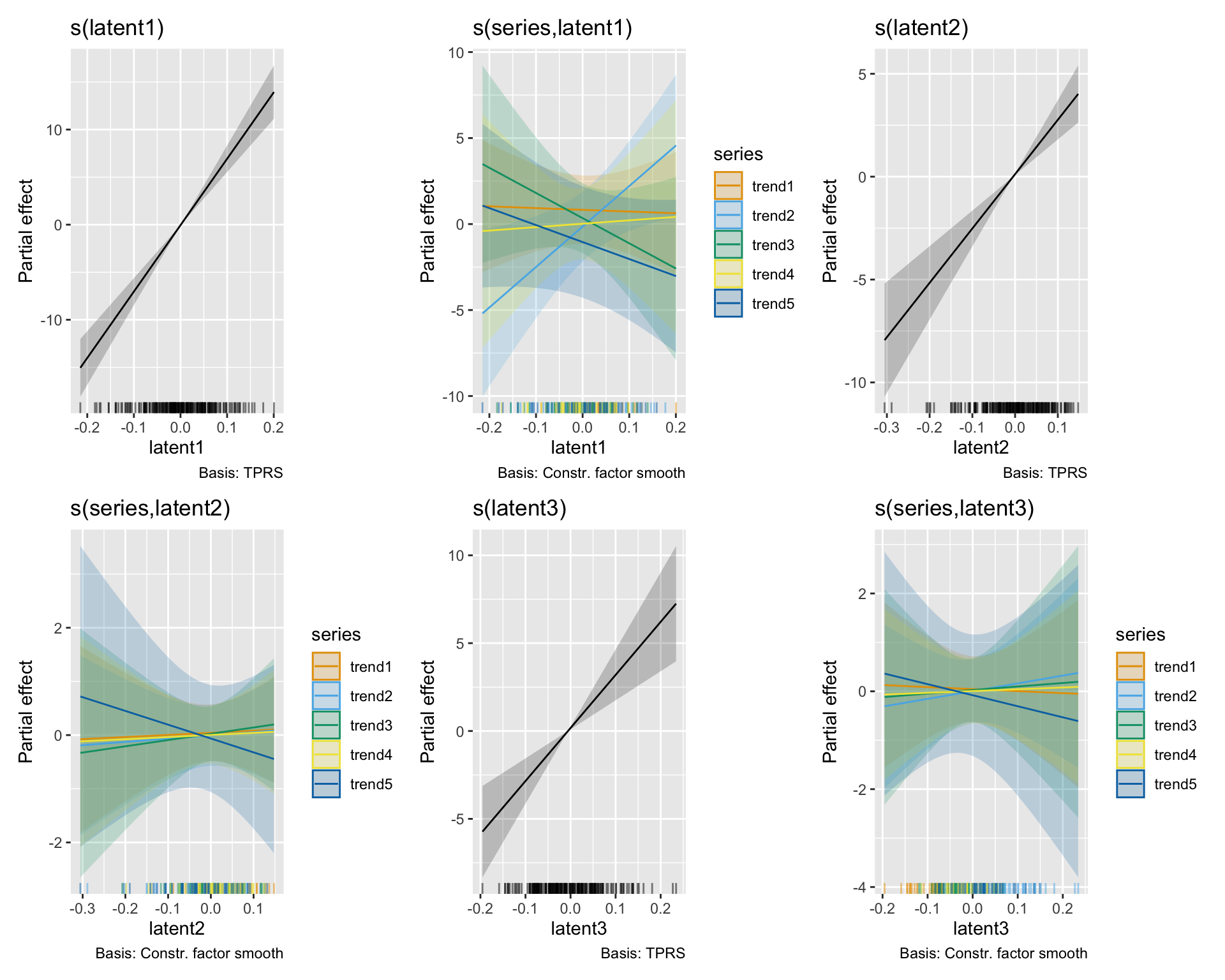

Approximate significance of GAM process smooths:
                   edf Ref.df  Chi.sq p-value
s(latent1)        1.03      2 4723.06 < 2e-16 ***
s(series,latent1) 7.18     12  132.36    0.37
s(latent2)        1.02      2  640.80 < 2e-16 ***
s(series,latent2) 3.75     12    2.03    1.00
s(latent3)        0.99      2  326.97 7.1e-06 ***
s(series,latent3) 1.22     12    2.26    1.00
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Stan MCMC diagnostics:
✔ No issues with effective samples per iteration
✖ Rhats above 1.05 found for some parameters
    Use pairs() and mcmc_plot() to investigate
✖ 132 of 2000 iterations ended with a divergence (6.6%)
    Try a larger adapt_delta to remove divergences
✔ No issues with maximum tree depth

Samples were drawn using sampling(hmc). For each parameter, n_eff is a
  crude measure of effective sample size, and Rhat is the potential scale
  reduction factor on split MCMC chains (at convergence, Rhat = 1)

Use how_to_cite() to get started describing this model

The model shows severe convergence issues. Several variance parameters (sigmas) from both the observation and process models are poorly identified, with terrible effective sample sizes and Rhat values. Let me unpack what’s happening here. In our state-space formulation:

The baseline: Without weather effects, each location would bloom on roughly the same day every year (captured by the location intercepts) The process model: Our SPLS-derived latent factors predict deviations from this baseline. The process error represents additional year-to-year variation not captured by weather - perhaps soil conditions, tree age, or other unmeasured factors The observation model: This is where bloom dates actually get recorded. The observation error represents how much our weather-based predictions miss the true bloom dates

The identifiability crisis occurs because the model can explain the same bloom variability in multiple ways. High process error + low observation error? Low process error + high observation error? Without constraints, the model can’t decide. Here’s the key insight: Our SPLS model achieved good R² and MAE when fitted on pooled data from all locations. This means it captures the “average” weather-bloom relationship well, but likely misses location-specific nuances by roughly the same amount everywhere. The observation error is essentially quantifying “how wrong is our one-size-fits-all weather model?” By setting share_obs_params = TRUE, I enforce this logic: all locations share the same observation variance because they all use the same pooled SPLS model. This constraint breaks the identifiability problem while still allowing location-specific process errors to capture unique temporal patterns. Additionally, with 19% of iterations ending in divergences, I’ll increase adapt_delta to 0.99, max_treedepth to 12, and number of iterations for more careful exploration of the posterior:

model_shared_sz <- mvgam(formula = bloom_doy ~ series,
                       trend_formula = ~ s(latent1, k=3) + s(trend, latent1, bs="sz",k=3) +
                           s(latent2, k=3) + s(trend, latent2, bs="sz",k=3) +
                           s(latent3, k=3) + s(trend, latent3, bs="sz",k=3),
                     data = train_mvgam,
                     newdata = test_mvgam,
                     share_obs_params = TRUE,
                     noncentred = TRUE,
                     control = list(adapt_delta = 0.99, max_treedepth = 12),
                     burnin = 500,
                     samples = 2000,
                     family = gaussian(),silent = 2)

summary(model_shared_sz, include_betas = FALSE)

GAM observation formula:
bloom_doy ~ series

GAM process formula:
~s(latent1, k = 3) + s(trend, latent1, bs = "sz", k = 3) + s(latent2,
    k = 3) + s(trend, latent2, bs = "sz", k = 3) + s(latent3,
    k = 3) + s(trend, latent3, bs = "sz", k = 3)

Family:
gaussian

Link function:
identity

Trend model:
None

N process models:
5

N series:
5

N timepoints:
45

Status:
Fitted using Stan
4 chains, each with iter = 2500; warmup = 500; thin = 1
Total post-warmup draws = 8000


Observation error parameter estimates:
          2.5% 50% 97.5% Rhat n_eff
sigma_obs  2.7 3.2   3.7    1  2401

GAM observation model coefficient (beta) estimates:
                                   2.5%   50% 97.5% Rhat n_eff
(Intercept)                        89.0 94.00  99.0    1  3503
seriesLiestal-Weideli, Switzerland -5.1 -1.60   1.6    1  4643
seriesNew York, USA                -2.4  0.81   4.5    1  4682
seriesVancouver, Canada            -4.8 -0.85   2.6    1  9138
seriesWashington DC, USA           -5.7 -1.30   2.5    1  4568

Process error parameter estimates:
          2.5%  50% 97.5% Rhat n_eff
sigma[1] 0.012 0.26   1.1    1  7048
sigma[2] 0.016 0.47   2.2    1  2022
sigma[3] 2.100 4.50   6.8    1  2254
sigma[4] 0.013 0.34   1.8    1 11527
sigma[5] 0.016 0.44   2.0    1  2386

GAM process model coefficient (beta) estimates:
                  2.5%    50% 97.5% Rhat n_eff
(Intercept)_trend -5.1 -0.036   5.1    1  3722

Approximate significance of GAM process smooths:
                   edf Ref.df  Chi.sq p-value
s(latent1)        1.01      2 4085.94 < 2e-16 ***
s(series,latent1) 7.64     12  239.55    0.18
s(latent2)        1.09      2  655.87 < 2e-16 ***
s(series,latent2) 1.97     12    2.81    1.00
s(latent3)        1.01      2  305.76 1.7e-05 ***
s(series,latent3) 2.12     12    1.27    1.00
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Stan MCMC diagnostics:
✔ No issues with effective samples per iteration
✔ Rhat looks good for all parameters
✔ No issues with divergences
✔ No issues with maximum tree depth

Samples were drawn using sampling(hmc). For each parameter, n_eff is a
  crude measure of effective sample size, and Rhat is the potential scale
  reduction factor on split MCMC chains (at convergence, Rhat = 1)

Use how_to_cite() to get started describing this model

gratia::draw(model_shared_sz, trend_effects=TRUE)

The enhanced sampling and shared observation parameters completely fixed our convergence issues. All parameters now have excellent effective sample sizes and Rhat values of 1.00. The shared observation error settled at about 3.2 days (pretty much as MAE of joint SPLS model) - this represents how much our weather-based predictions typically miss the actual bloom dates. Looking at the smooth effects, the main patterns are beautifully linear, exactly as expected from our SPLS-derived factors. Each latent factor shows a strong linear relationship with bloom timing (all p < 0.001). The location-specific deviations (s(series,latent) terms) aren’t statistically significant, which isn’t surprising given our limited data. However, they still capture subtle location-specific responses that contribute to more accurate predictions. Lets look at series themselves:

plot(model_shared_sz, type="forecast",trend_effects = TRUE,series=1)

Out of sample CRPS:
0.817677993584371

plot(model_shared_sz, type="forecast",trend_effects = TRUE,series=2)

Out of sample CRPS:
3.94968940550937

plot(model_shared_sz, type="forecast",trend_effects = TRUE,series=3)

Out of sample CRPS:
1.3673925550625

plot(model_shared_sz, type="forecast",trend_effects = TRUE,series=4)

Out of sample CRPS:
5.40008450334061

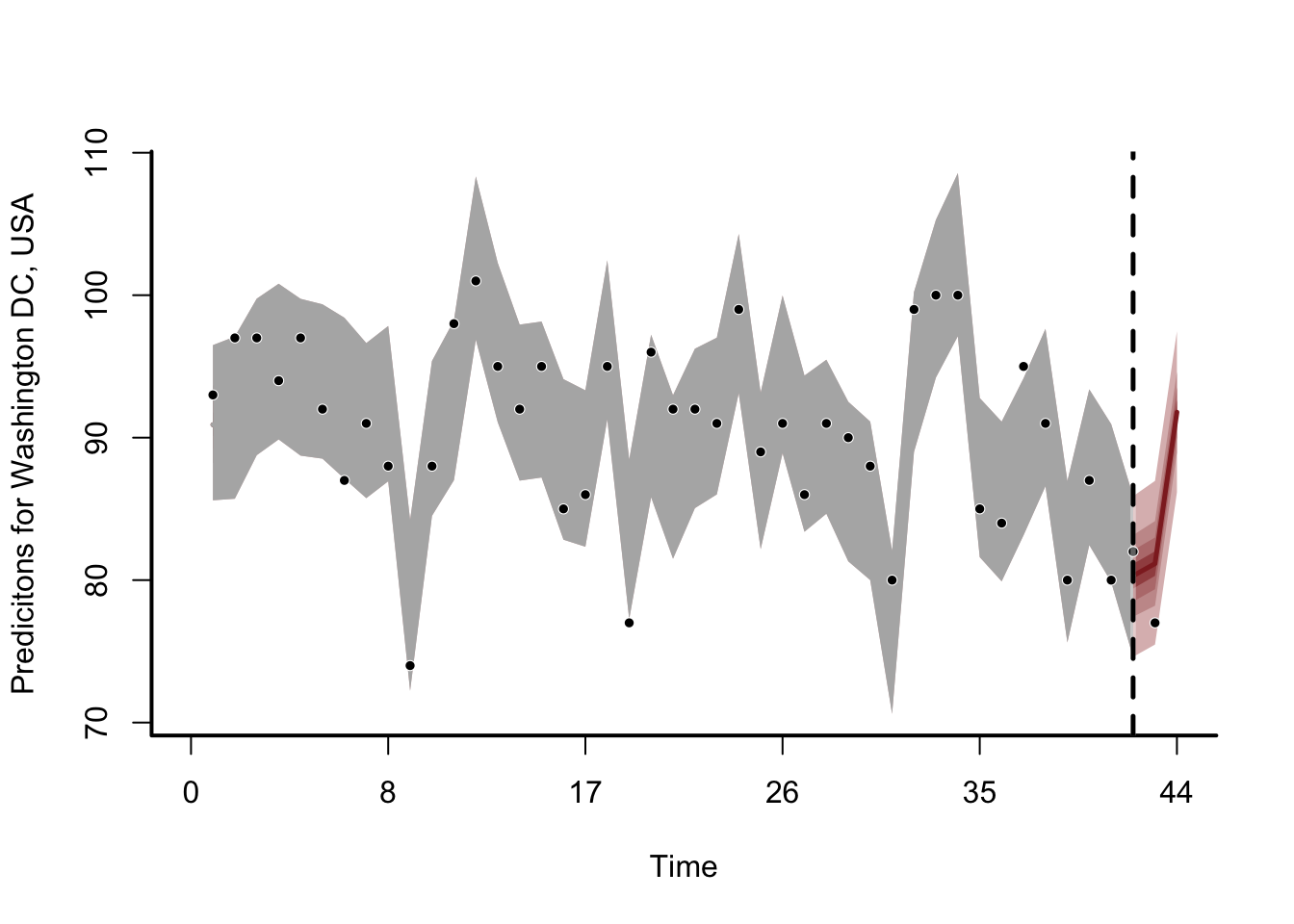

plot(model_shared_sz, type="forecast",trend_effects = TRUE,series=5)

Out of sample CRPS:
2.59631972186406

Pretty groowy. So lets now run predictions for 2025 and compare with real data.

# Forecast
fc <- forecast(model_shared_sz, test_mvgam)

# Map full location names to short names for predictions
location_mapping <- c(
  "Kyoto, Japan"                = "kyoto",
  "Liestal-Weideli, Switzerland" = "liestal",
  "New York, USA"               = "newyorkcity",
  "Vancouver, Canada"           = "vancouver",
  "Washington DC, USA"          = "washingtondc"
)

# Create dataframe with actual 2025 bloom dates
actual_2025 <- data.frame(
  location = c("liestal", "vancouver", "kyoto", "washingtondc", "newyorkcity"),
  actual_date = as.Date(c("2025-03-27", "2025-04-03", "2025-04-04", "2025-03-28", "2025-04-04")),
  actual_doy = c(86, 93, 94, 87, 94),
  stringsAsFactors = FALSE
)

# Extract posterior draws for all locations
posterior_draws <- list()
for (i in seq_along(fc$series_names)) {
  full_name <- as.character(fc$series_names[i])
  short_name <- location_mapping[full_name]
  posterior_draws[[short_name]] <- fc$forecasts[[i]][, 2]  # 2025 predictions
}

# Convert to long format for plotting
draws_df <- data.frame(
  value = unlist(posterior_draws),
  location = rep(names(posterior_draws), each = length(posterior_draws[[1]]))
)

# Add actual values
draws_df <- merge(draws_df, actual_2025[, c("location", "actual_doy")], by = "location", all.x = TRUE)

# Add proper location names
draws_df$location_full <- factor(draws_df$location,
  levels = c("kyoto", "liestal", "newyorkcity", "vancouver", "washingtondc"),
  labels = c("Kyoto, Japan",
             "Liestal, Switzerland",
             "New York City, USA",
             "Vancouver, Canada",
             "Washington DC, USA"))

# Calculate summary statistics with rounded differences
summary_stats <- draws_df %>%
  group_by(location_full, actual_doy) %>%
  summarise(
    median_pred = median(value),
    mean_pred = mean(value),
    .groups = 'drop'
  ) %>%
  mutate(
    diff = round(median_pred - actual_doy, 0),
    diff_text = case_when(
      diff > 0 ~ paste0("+", diff, " days"),
      diff < 0 ~ paste0(diff, " days"),
      TRUE ~ "Perfect!"
    )
  )

# Create the plot
# Define a unified fill palette (you can swap in your custom hexes if you prefer)
palette5 <- RColorBrewer::brewer.pal(5, "Set1")

# Clean data if needed (optional defensive step)
draws_df_clean <- draws_df %>% filter(is.finite(value))
summary_stats_clean <- summary_stats %>% filter(is.finite(actual_doy))

p_presentation <- ggplot() +
  # Density curves
  geom_density(
    data    = draws_df_clean,
    aes(x = value, fill = location_full),
    alpha   = 0.8,
    color   = "white",
    linewidth = 0.5,
    na.rm   = TRUE
  ) +
  # Vertical line at actual bloom date
  geom_segment(
    data = summary_stats_clean,
    aes(x = actual_doy, xend = actual_doy, y = 0, yend = Inf),
    color    = "black",
    linewidth = 1.2
  ) +
  # Label with error text
  geom_label(
    data = summary_stats_clean,
    aes(x = actual_doy + 2, y = Inf, label = ifelse(diff == 0, "Spot on!", diff_text)),
    vjust         = 1.5,
    size          = 3.2,
    fontface      = "bold",
    fill          = "white",
    alpha         = 0.9,
    label.padding = unit(0.2, "lines"),
    label.size    = 0.25,
    na.rm         = TRUE
  ) +
  # Facet by location
  facet_wrap(~ location_full, scales = "free_y", nrow = 1) +
  # Unified fill palette
  scale_fill_manual(values = palette5) +
  # X axis limits and breaks
  coord_cartesian(xlim = c(78, 112)) +
  scale_x_continuous(breaks = seq(80, 110, by = 10)) +
  # Labels
  labs(
    title = "2025 Cherry Blossom Predictions vs Reality",
    x     = "Day of Year\n(vertical line = actual bloom date)",
    y     = NULL
  ) +
  # Unified theme
  theme_minimal(base_size = 13) +
  theme(
    plot.title       = element_text(face = "bold", size = 16, hjust = 0.5),
    strip.text       = element_text(face = "bold", size = 11),
    axis.text.x      = element_text(size = 9),
    axis.text.y      = element_blank(),
    axis.ticks.y     = element_blank(),
    panel.grid.major = element_line(color = "grey85", size = 0.3),
    panel.grid.minor = element_blank(),
    panel.spacing    = unit(0.6, "lines"),
    legend.position  = "none",
    plot.margin      = margin(12, 12, 12, 12)
  )

Warning: The `size` argument of `element_line()` is deprecated as of ggplot2 3.4.0.
ℹ Please use the `linewidth` argument instead.

print(p_presentation)

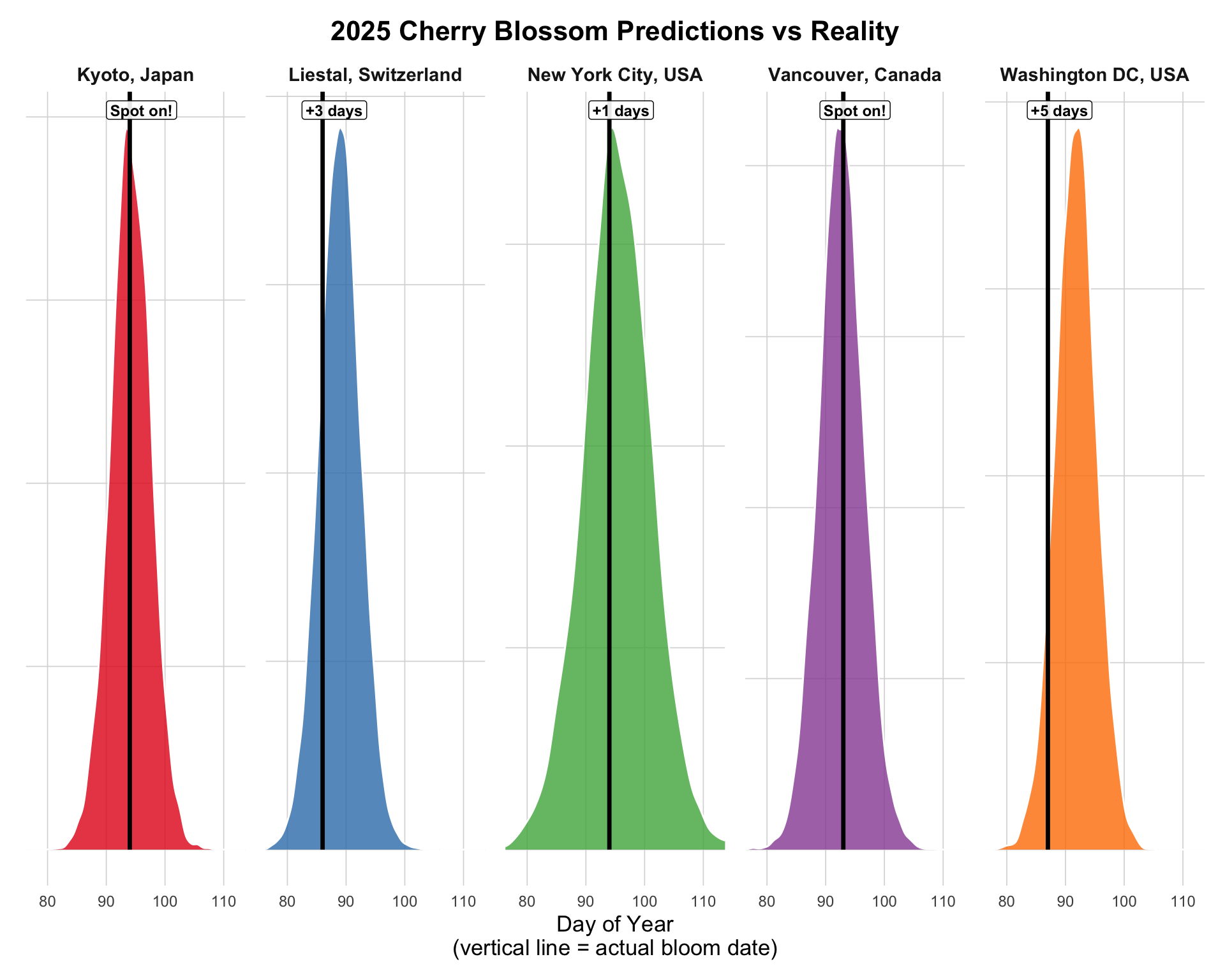

Two perfect predictions (Kyoto and Vancouver), and the rest within a week - not bad for a model predicting a complex biological phenomenon months in advance. What started as a challenge to predict cherry blossoms using weather anomalies has demonstrated the power of combining dimensional reduction (SPLS) with flexible modeling (mvgam). The approach successfully handled the twin challenges of high-dimensional weather data and sparse observations, delivering predictions with well-calibrated uncertainty. Most satisfying is that the locations with the least data (New York and Vancouver) performed just as well as data-rich sites - proof that our shrinkage approach effectively borrowed strength across locations. Cherry trees may not follow universal rules, but with the right modeling framework, I can still capture their unique responses to weather patterns

We used R version 4.5.1 (R Core Team 2025) and the following R packages: data.table v. 1.17.8 (Barrett et al. 2025), gratia v. 0.10.0 (Simpson 2024), missForest v. 1.5 (Stekhoven and Buehlmann 2012; Stekhoven 2022), mvgam v. 1.1.51 (Clark and Wells 2023), nasapower v. 4.2.5 (Sparks 2018), RColorBrewer v. 1.1.3 (Neuwirth 2022), rmarkdown v. 2.29 (Xie, Allaire, and Grolemund 2018; Xie, Dervieux, and Riederer 2020; Allaire et al. 2024), scales v. 1.4.0 (Wickham, Pedersen, and Seidel 2025), spls v. 2.3.2 (Chung, Chun, and Keles 2025), tidyverse v. 2.0.0 (Wickham et al. 2019).

References

Allaire, JJ, Yihui Xie, Christophe Dervieux, Jonathan McPherson, Javier Luraschi, Kevin Ushey, Aron Atkins, et al. 2024. rmarkdown: Dynamic Documents for r. https://github.com/rstudio/rmarkdown.

Barrett, Tyson, Matt Dowle, Arun Srinivasan, Jan Gorecki, Michael Chirico, Toby Hocking, Benjamin Schwendinger, and Ivan Krylov. 2025. data.table: Extension of “data.frame”. https://doi.org/10.32614/CRAN.package.data.table.

Chung, Dongjun, Hyonho Chun, and Sunduz Keles. 2025. spls: Sparse Partial Least Squares (SPLS) Regression and Classification. https://doi.org/10.32614/CRAN.package.spls.

Clark, Nicholas J, and Konstans Wells. 2023. “Dynamic Generalized Additive Models (DGAMs) for Forecasting Discrete Ecological Time Series.” Methods in Ecology and Evolution 14: 771–84. https://doi.org/10.18637/jss.v100.i05.

Neuwirth, Erich. 2022. RColorBrewer: ColorBrewer Palettes. https://doi.org/10.32614/CRAN.package.RColorBrewer.

R Core Team. 2025. R: A Language and Environment for Statistical Computing. Vienna, Austria: R Foundation for Statistical Computing. https://www.R-project.org/.

Simpson, Gavin L. 2024. gratia: Graceful ggplot-Based Graphics and Other Functions for GAMs Fitted Using mgcv. https://gavinsimpson.github.io/gratia/.

Sparks, Adam H. 2018. “nasapower: A NASA POWER Global Meteorology, Surface Solar Energy and Climatology Data Client for r.” The Journal of Open Source Software 3 (30): 1035. https://doi.org/10.21105/joss.01035.

Stekhoven, Daniel J. 2022. missForest: Nonparametric Missing Value Imputation Using Random Forest.

Stekhoven, Daniel J., and Peter Buehlmann. 2012. “MissForest - Non-Parametric Missing Value Imputation for Mixed-Type Data.” Bioinformatics 28 (1): 112–18.

Wickham, Hadley, Mara Averick, Jennifer Bryan, Winston Chang, Lucy D’Agostino McGowan, Romain François, Garrett Grolemund, et al. 2019. “Welcome to the tidyverse.” Journal of Open Source Software 4 (43): 1686. https://doi.org/10.21105/joss.01686.

Wickham, Hadley, Thomas Lin Pedersen, and Dana Seidel. 2025. scales: Scale Functions for Visualization. https://doi.org/10.32614/CRAN.package.scales.

Xie, Yihui, J. J. Allaire, and Garrett Grolemund. 2018. R Markdown: The Definitive Guide. Boca Raton, Florida: Chapman; Hall/CRC. https://bookdown.org/yihui/rmarkdown.

Xie, Yihui, Christophe Dervieux, and Emily Riederer. 2020. R Markdown Cookbook. Boca Raton, Florida: Chapman; Hall/CRC. https://bookdown.org/yihui/rmarkdown-cookbook.
